KCDesign Performance Inverted Suspension
Although the start is late and the time to market is slow, but after a long time of road testing and matching of the same model, I am convinced that only if you have a real understanding of Volvo, you can design the products that Volvo owners need. We are definitely not the cheapest, but we will make the most for your car. Preparation for vehicle upgrade planning
Let the chassis-related modified parts no longer be a mix and match of various brands, but are not matched and wasteful, but a planned and systematic improvement, so that every upgrade of the customer is a pleasant experience.
Features of KCDesign Volvo XC40 (cma) inverted suspension (HPS-V2)
- Special setting/adjustment for your car

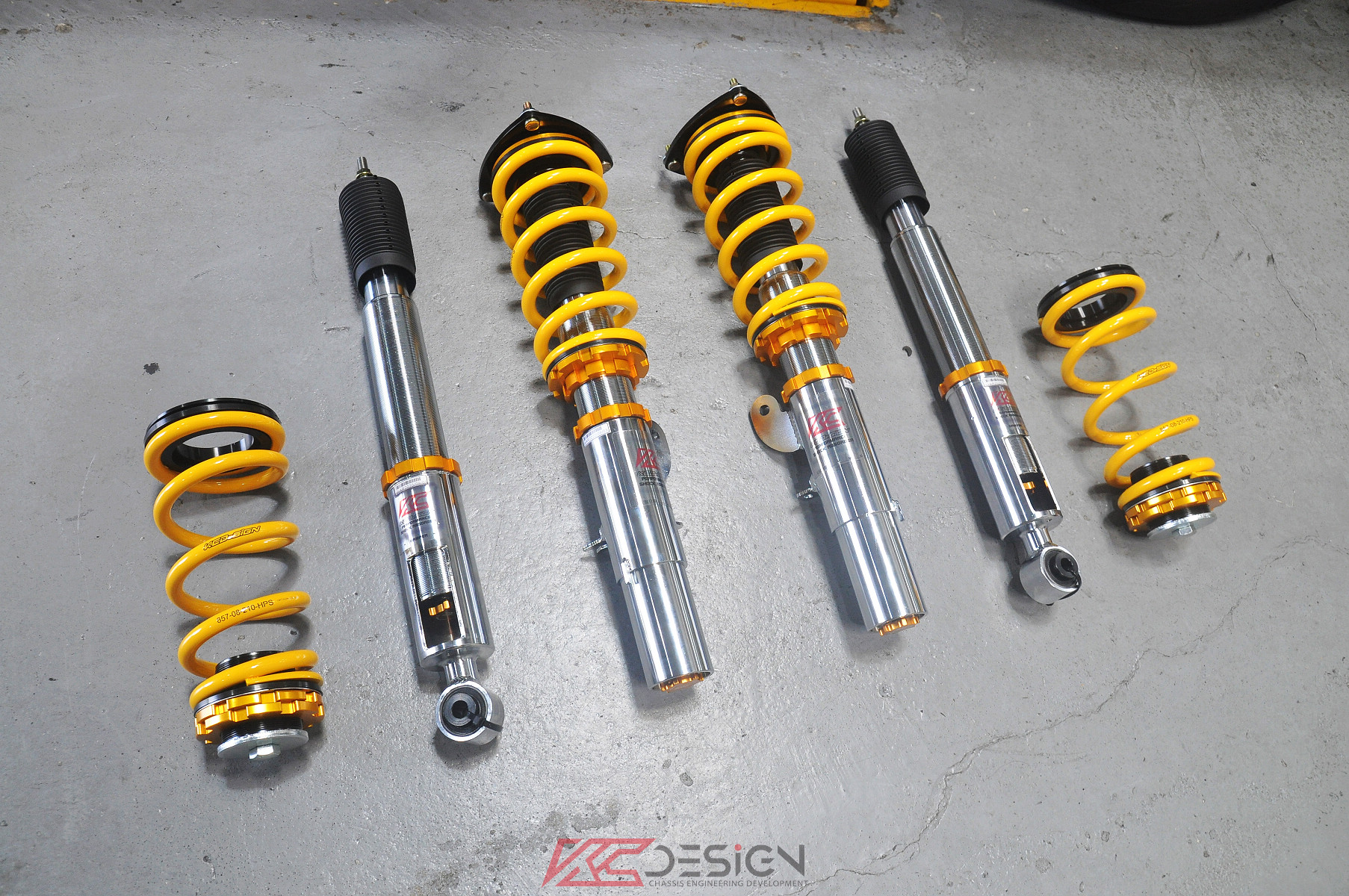

- V2 Type is front & rear was designed with inverted fork. Provides strong support and comfort
- Front and rear body can be adjusted individually, it will not reduce the life of spring.
- The spring adopts the High Performance Spring (HPS) spring developed and designed exclusively by KCDesign. It is a hot-rolled design (the same process as our anti-roll bar). Various versions of HPS springs can be matched according to the customer's requirements for road feel.

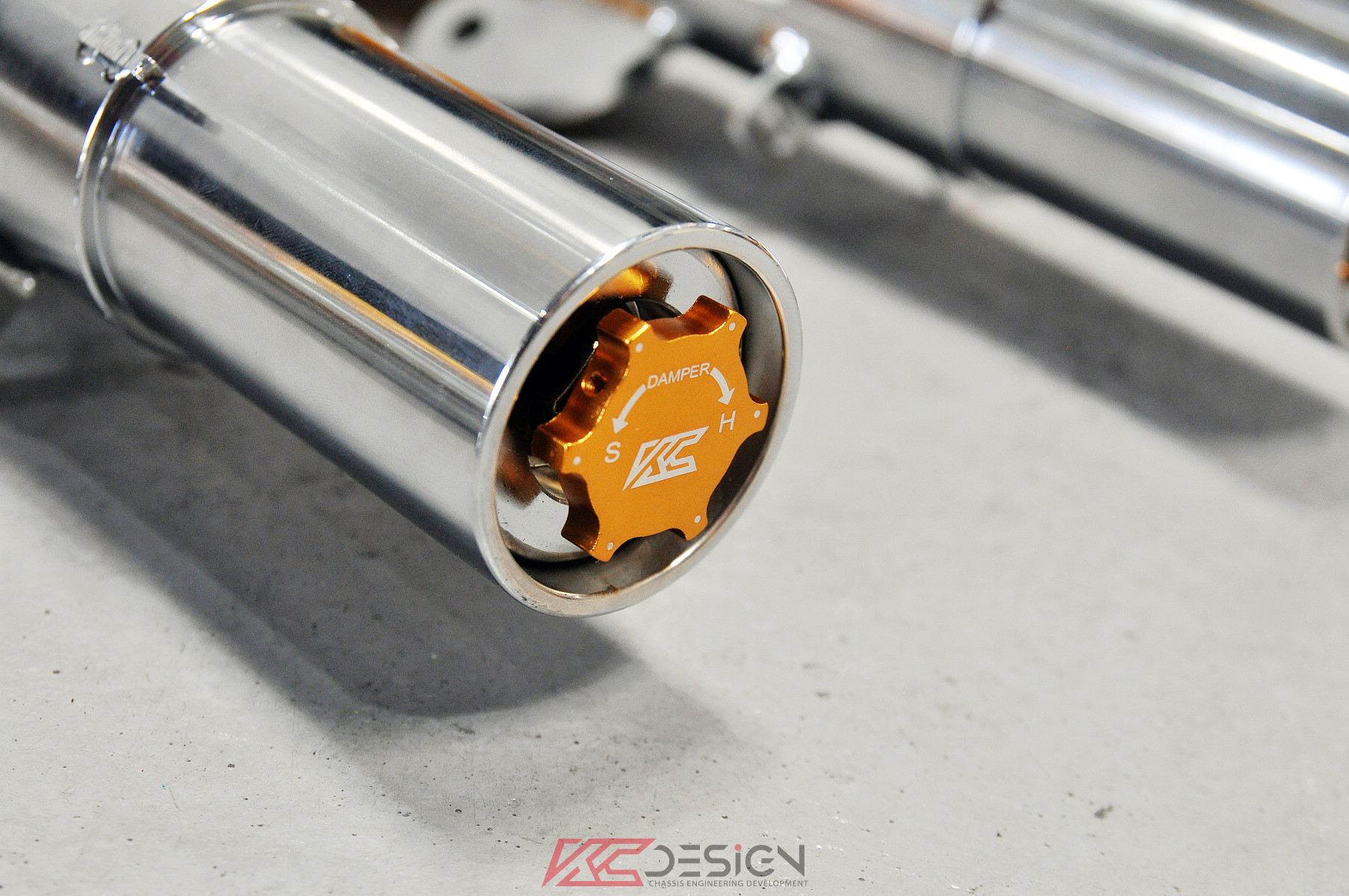

- We have 24 levels to adjust the damping, pre-setting will be medium level (12-14), then you can adjust it higher or lower to match your needs.
- Applicable year:Volvo XC40 (CMA) 2018~Present
- Vehicle height adjustment range: 0~ -50mm (Front), 0~ -55mm (Rear)
KCDesign Volvo XC40 (CMA底盤) 倒插式避震器 (HPS-V2) 特色：
- 彈簧採用KCDesign 獨家開發設計的High Performance Spring (HPS) 熱捲式高荷重彈簧(與我們的防傾桿相同製程)，可藉由客戶的對於路感的要求，進行各種版本的HPS彈簧搭配~為台灣路面最為適當的彈簧磅數設定
- 適用年份：Volvo XC40 2018~ (CMA平台)
- 車高調整範圍：0~ -50mm (前)、後 0~ -55mm (後)
